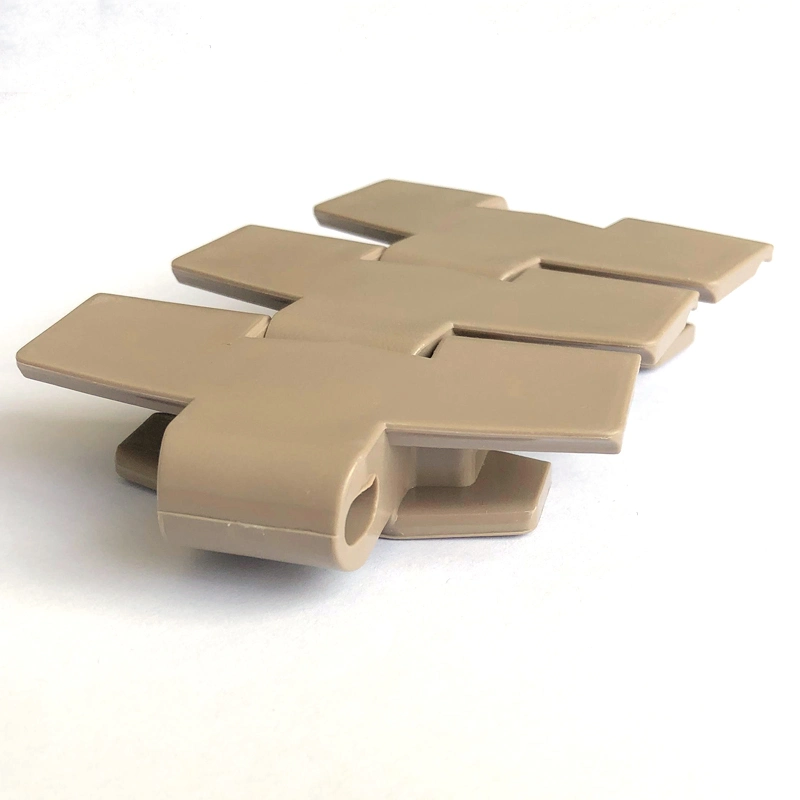

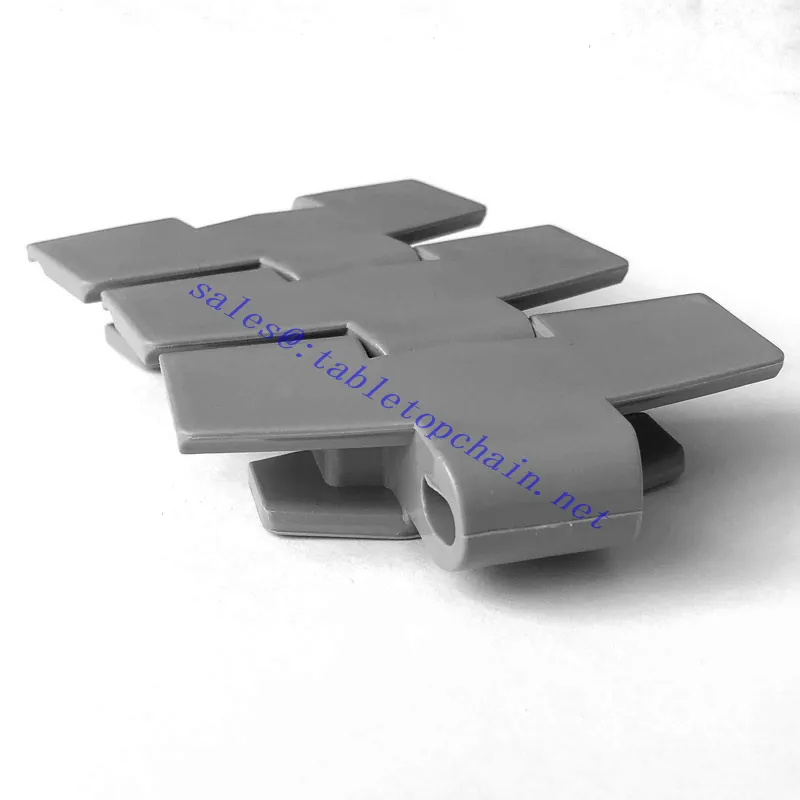

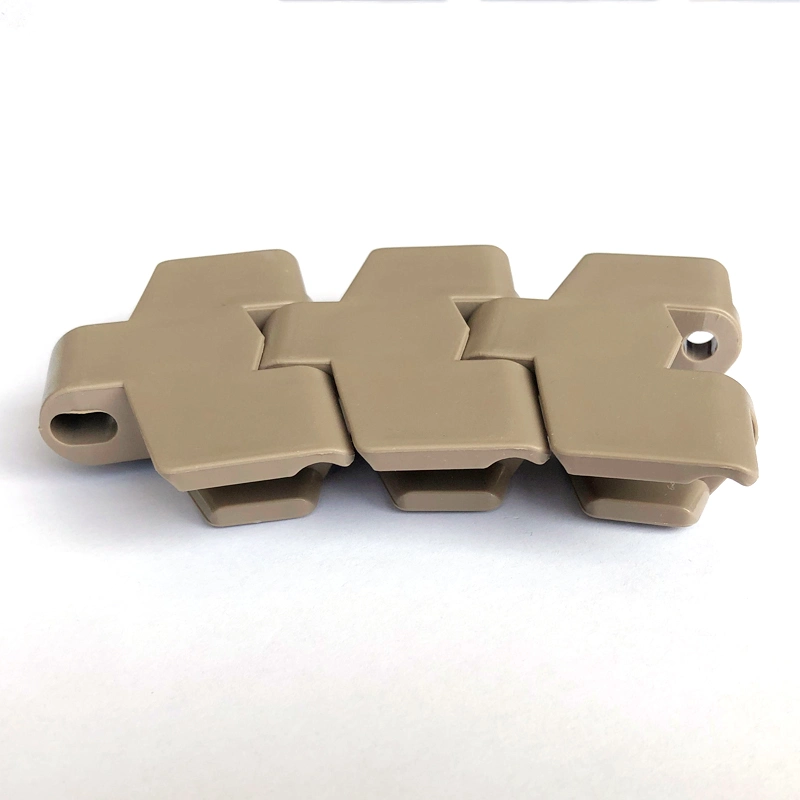

Plastic Small Radius Conveyor Tabletop Chain
As one of the tabletop chain manufacturers, suppliers, and exporters of mechanical products, We offer tabletop chain and many other products.
Please get in touch with us for details.
Tabletop Chain
A tabletop chain, also known as a flat top chain or slat chain, is a type of conveyor chain used in material handling and conveying systems. It is characterized by its flat, wide surface, which provides a stable platform for the transportation of products or materials.
Tabletop chains consist of individual links or slats connected together to form an endless loop. The links are typically made of plastic, stainless steel, or carbon steel. The design and construction of tabletop chains allow them to handle heavy loads, withstand high temperatures, and resist wear and abrasion.
Tabletop chains are a type of conveyor chain that is used to transport products on a flat surface. They are typically made of stainless steel or plastic, and they can be either straight or curved. Tabletop chains are used in a variety of industries, including food processing, packaging, and manufacturing.
Product Description

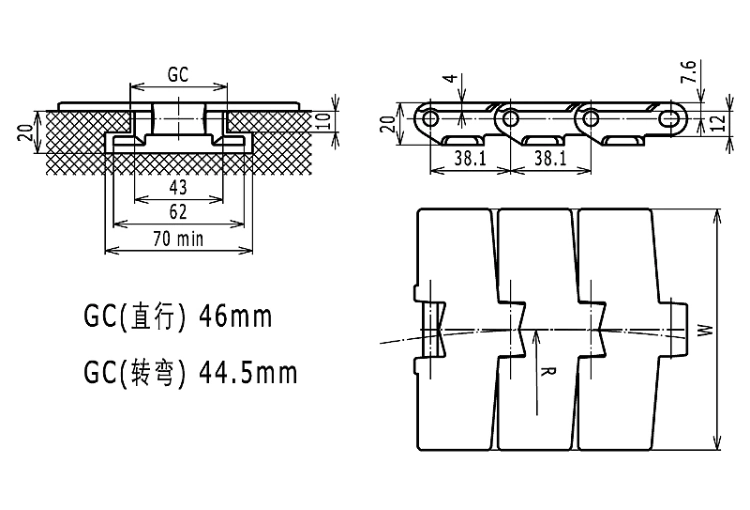

| Chain type | Plate width | Weight | Sideflex radius(min.) | Working load(max) | Backflex radius(min) | Plate thickness |
| mm | kg/m | mm | N(21ºC) | mm | mm | |
| 880TAB BO-K325 | 82.5 | 0.96 | 200 | 1680 | 40 | 4.0 |
| 880TAB BO-K450 | 114.3 | 1.11 | 200 | 1680 | 40 | 4.0 |
How to choose the right tabletop chain
When choosing a tabletop chain, there are a number of factors to consider, including:
- The type of products being transported: The type of products that will be transported on the conveyor chain will determine the type of chain that is needed. For example, delicate products will require a chain that is designed for gentle handling.
- The speed of the conveyor line: The speed of the conveyor line will also determine the type of chain that is needed. For example, high-speed conveyor lines will require a chain that is designed for heavy-duty use.
- The environment in which the conveyor line will be used: The environment in which the conveyor line will be used will also determine the type of chain that is needed. For example, conveyor lines that are used in wet or dirty environments will require a chain that is made from corrosion-resistant materials.
Installation and maintenance of tabletop chains
Tabletop chains are relatively easy to install and maintain. However, it is important to follow the manufacturer's instructions carefully to ensure that the chain is installed and maintained properly.
Here are some general tips for installing and maintaining tabletop chains:
- Make sure that the conveyor frame is level and sturdy. The conveyor frame must be able to support the weight of the chain and the products being transported.
- Clean and lubricate the chain regularly. This will help to prevent wear and tear and extend the life of the chain.
- Inspect the chain regularly for damage. If any damage is found, the chain should be repaired or replaced immediately.
